Other Features

More features of the Perfect Layout plug-in are listed in the Overview section.
As these are so basic for every music score, they can't be switched off.
You can exclude expressions individually from alignment by adding the keyword EXCLUDE to the description text in the expression designer dialog. This can be helpful if you need an unusual placement of an expression which at the same should be taken into account for visual score balancing.

Similar to the "EXCLUDE" feature, you can add "FORCEINCLUDE" to the description text of an expression and it will be included even if it is huge and far above/below a staff. By default these expressions would not be taken into account for vertical alignment and/or spacing.

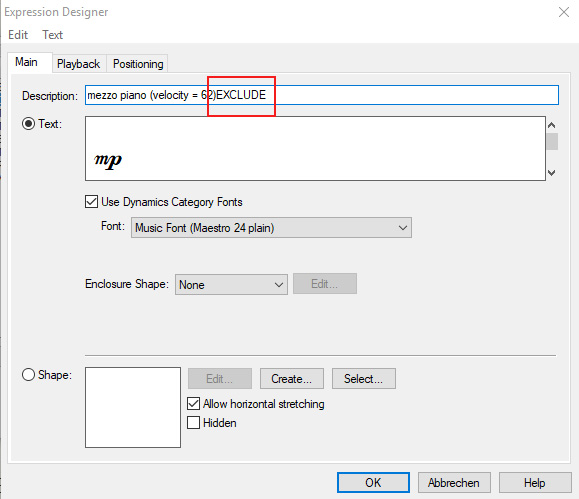

Image 1: EXCLUDE in the description text

When clicking on the little buttons next to the user dialog options a pop-up preview image will appear in your web browser.
In Perfect Layout v3/RGP Lua the buttons also include a question mark.
Unfortunately JW Lua doesn't support embedded images in the user dialog, so this is the only option to have images connected with the user dialog.

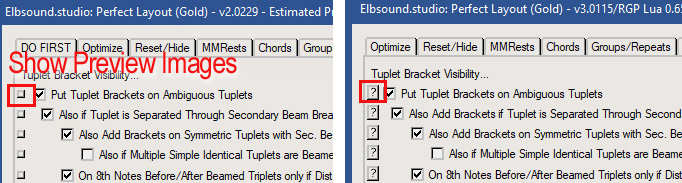

Image 2: Preview image button in Perfect Layout version 2/JW Lua (left) and version 3/RGP Lua (right)
You can directly access the Perfect Layout documentation from the user dialog.
If you click on"Help", this documentation page for the current user tab will open in your web browser.
If you click on "PDF", the full PDF documentation opens up in your PDF viewer.


Image 3: Help button and PDF button for accessing the documentation
You can set the unit of measurement in Perfect Layout at any time in the user dialog at the bottom.
This will update all unit based values in Perfect Layout.


Image 4: Measurement units in Perfect Layout
